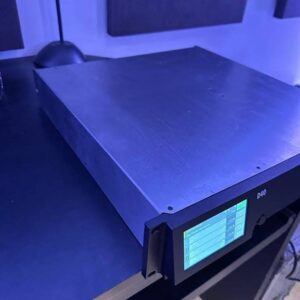

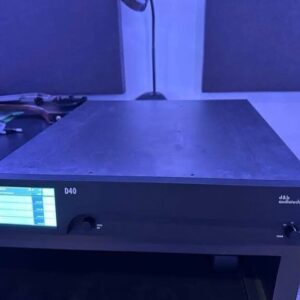

D&B Audiotechnik D40 – 4-Channel DSP Amplifier with Advanced System Control

The D&B Audiotechnik D40 is a high-efficiency 4-channel Class-D amplifier designed for modern d&b sound systems, combining powerful output, integrated DSP, advanced networking, and energy-efficient operation in a compact 2U platform.

Positioned between the D20 and flagship amplifiers, the D40 is engineered for touring, rental, and installation environments where flexibility, control, and system efficiency are critical. It is widely used across Europe to power Y-Series, V-Series, and other d&b loudspeaker systems, delivering consistent performance with reduced system complexity.

---

Key Specifications

Amplifier Type: 4-channel Class-D amplifier with integrated DSP
Channels: 4 independent amplifier channels

Output Power:

• Up to 2400 W per channel @ 4 Ω
• Up to 2000 W per channel @ 8 Ω

Peak Voltage: 180 V
Peak Current: 35 A
Total Output Power: 9600 W (at 12 dB crest factor)

DSP Sampling: 96 kHz processing platform

---

Physical & Mechanical Details

Form Factor: 2U rackmount
Depth: Approx. 465 mm
Weight: ~13.8 kg

Construction: Touring-grade chassis designed for rack integration
Cooling: Variable-speed fan cooling system for thermal stability

Display & Control:

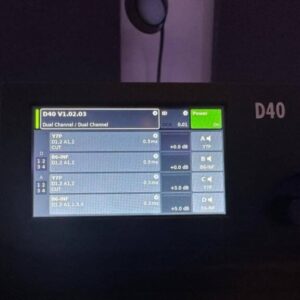

4.3″ color touchscreen with rotary encoder for direct system access

---

DSP & Signal Processing

The D40 integrates a high-performance DSP engine, allowing complete control of the loudspeaker system directly from the amplifier.

DSP Features

• 16-band EQ per channel (parametric, shelving, notch, asymmetric filters)
• Up to 10 seconds delay per channel
• Adjustable crossover and system limiting
• Loudspeaker-specific presets for accurate tuning

---

LoadMatch Technology

• Compensates for cable losses over long distances (up to ~70 m)
• Maintains consistent frequency response and system performance

---

Practical Advantage

• Eliminates need for external processors
• Ensures consistent system tuning across venues
• Reduces setup time significantly

---

Connectivity & Integration

The D40 is designed for modern networked audio environments, supporting both analog and digital signal paths.

Inputs

• 4 × analog XLR inputs
• 2 × AES3 digital inputs (4 channels total)

---

Outputs

• 4 × NL4 speaker outputs
• 1 × NL8 connector (supports all 4 channels in one connection)

---

Control & Networking

• Dual Gigabit Ethernet ports
• OCA / AES70 protocol compatibility
• Web browser access for remote control
• Full integration with d&b R1 software

---

User Interface & Control

The D40 is designed for fast and intuitive operation, both locally and remotely.

Front Panel Control

• 4.3″ color touchscreen
• Rotary encoder for navigation
• Direct access to system parameters

---

Remote Operation

• Full system control via network
• Monitor multiple amplifiers simultaneously
• Adjust EQ, delay, and system settings in real time

---

Protection & Power Management

The D40 includes advanced protection systems to ensure reliability in demanding environments.

Protection Features

• Overcurrent protection
• Thermal shutdown protection
• DC offset protection
• HF voltage limiting

---

Power Supply

• Auto-ranging switch-mode power supply (SMPS)
• Input range: 100–240 V AC
• Power Factor Correction (PFC) for stable operation

---

Energy Efficiency

• Automatic wake-up functionality
• Standby consumption: ~12 W
• Idle consumption: ~130 W

---

Real-World Benefit

• Reduced energy costs
• Reliable performance across different power conditions
• Suitable for long-duration events and installations

---

Key Features & Configuration

4-Channel Architecture:
Allows multiple loudspeakers to be powered from a single unit, reducing rack space and system complexity.

Integrated DSP Platform:
Handles crossover, EQ, delay, and protection internally, eliminating external processing.

Flexible Output Modes:
Supports mixed TOP/SUB configurations within the same amplifier.

Automatic Failover:
Switches between analog and digital inputs for uninterrupted signal flow.

---

System Integration

The D40 is optimized for use with:

• Y-Series line array systems
• V-Series systems
• KSL and other advanced d&b systems
• Subwoofer arrays requiring precise control

---

Typical Configuration

• Multiple loudspeakers powered per amplifier
• DSP handling full system processing
• Networked control for large deployments

---

Ideal Applications

Touring and rental systems
Festivals and live events
Corporate AV productions
Houses of worship
Fixed installations and multi-zone systems

---

Performance Characteristics

The D40 is known for:

• High power output with stable performance
• Precise DSP control and tuning flexibility
• Efficient operation with reduced energy consumption
• Reliable system behavior under demanding conditions

In real-world use, it delivers a balanced combination of power, control, and efficiency, making it a strong choice for modern professional audio systems.

---

System Advantages in Practice

Efficiency:
High power output with reduced energy consumption.

Scalability:
Supports multi-zone and large system deployments.

Flexibility:
Handles mixed speaker configurations easily.

Reliability:
Advanced protection ensures stable operation during long events.

---

Summary

The D&B Audiotechnik D40 amplifier is a high-performance 4-channel DSP amplifier delivering powerful output, advanced control, and energy-efficient operation.

---

Bottom Line

For professional audio systems in Europe, the D40 offers a modern, scalable solution that combines amplification, processing, and system control in one unit, making it ideal for both touring and installation environments.
