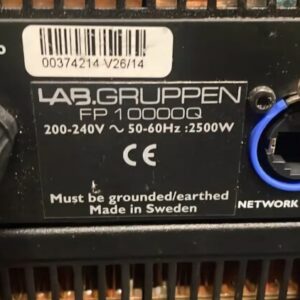

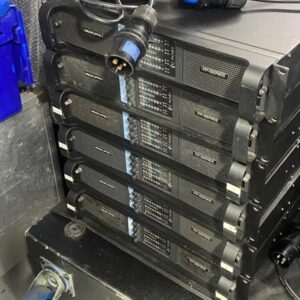

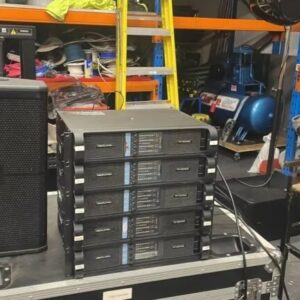

Lab Gruppen FP 10000Q – 4-Channel High-Power Touring Amplifier

The Lab Gruppen FP 10000Q is a legendary 4-channel touring amplifier engineered for high-output professional sound systems, delivering extreme power density, exceptional audio clarity, and touring-grade reliability in a compact 2U rack format.

Part of the renowned FP+ Series from Lab Gruppen, the FP 10000Q became a benchmark amplifier in large-scale touring systems across Europe because of its ability to combine:

• Massive output power
• Lightweight construction
• High efficiency
• Clean sonic performance

The amplifier is widely used in:

• Touring PA systems
• Festival sound rigs
• Funktion-One systems
• Large-format subwoofer arrays
• Professional rental inventories

Its reputation comes from delivering tight low-frequency control, high headroom, and reliable performance under extreme load conditions, making it one of the most respected amplifiers in professional live sound.

---

System Overview

Amplifier Type: 4-channel touring power amplifier
Amplifier Class: Proprietary Class TD® topology

Rack Size: 2U rackmount

Primary Function:

• Drives high-performance loudspeaker systems
• Powers touring line arrays and subwoofer systems
• Provides scalable multi-channel amplification in compact racks

---

Why the FP 10000Q Became an Industry Standard

During the peak era of large analogue touring racks, the FP 10000Q became popular because it offered something very few amplifiers could achieve simultaneously:

• High output power
• Lightweight chassis
• Touring reliability
• Excellent sound quality

Instead of requiring several heavy amplifiers, engineers could deploy a smaller number of FP10000Q units while maintaining:

• Better rack efficiency
• Reduced transport weight
• Cleaner system wiring

This made the amplifier especially attractive for:

• European touring companies
• Festival providers
• Rental houses needing high channel density

---

Power & Output Performance

The FP 10000Q is designed for extreme power delivery in demanding live environments.

---

Output Power Specifications

Output Power Per Channel:

• 4 × 2500 W @ 2 Ω
• 4 × 2100 W @ 4 Ω
• 4 × 1300 W @ 8 Ω
• 4 × 660 W @ 16 Ω

Total Peak Output:

• Up to 10,000 W total system output

Bridge Mode:

• Adjacent channels bridgeable for high-power applications

---

Real-World Power Advantage

In practical deployments:

• A single FP10000Q can drive multiple tops and subs simultaneously
• High headroom prevents amplifier clipping during demanding peaks
• Bass remains tight and controlled even at extreme SPL

This is one of the reasons the amplifier became heavily associated with:

• Funktion-One systems
• Large subwoofer arrays
• Touring festival rigs

---

Class TD® Amplifier Technology

One of the defining technologies of the FP10000Q is Lab Gruppen’s proprietary Class TD® output stage.

---

What Makes Class TD Different?

Class TD combines:

• The sonic character of Class AB amplification
• The efficiency advantages of Class D technology

Result:

• Lower heat generation
• Reduced power consumption
• High audio fidelity even under load

---

Practical Acoustic Benefit

Compared to conventional touring amplifiers:

• Low frequencies remain tighter
• Midrange clarity is improved
• High frequencies sound cleaner and less harsh

This gives the FP10000Q its well-known “fast and punchy” amplifier character.

---

Regulated Switch Mode Power Supply (R.SMPS™)

The FP10000Q uses a Regulated Switch Mode Power Supply system.

---

Key Benefits

• Stable rail voltages even during mains fluctuations
• Consistent amplifier performance under load
• Improved efficiency and reduced weight

---

Touring Advantage

In real touring environments:

• Power conditions are often inconsistent
• Generator voltage may fluctuate
• Long cable runs can affect stability

The R.SMPS system helps maintain:

• Reliable operation
• Consistent output performance
• Better protection during difficult conditions

---

Voltage Peak Limiter (VPL™)

One of the most important professional features of the FP10000Q is the integrated Voltage Peak Limiter (VPL) system.

---

VPL Functionality

The VPL allows engineers to:

• Adjust maximum output voltage
• Match amplifier behavior to loudspeaker capability
• Protect drivers from over-excursion

---

Practical System Advantage

This makes the amplifier highly adaptable for:

• Different loudspeaker brands
• Touring systems with varying impedance loads
• Sensitive HF driver protection

---

Audio Performance & Sound Character

The FP10000Q is known for its clean, transparent, and highly dynamic sound reproduction.

---

Performance Characteristics

• Fast transient response
• Tight low-frequency control
• Strong headroom under heavy load
• Low distortion at high SPL

---

Field Insight

In professional touring systems:

• Engineers often describe the amplifier as “fast” and “musical”
• Subwoofer systems sound tighter compared to cheaper amplifiers
• The amplifier maintains clarity where lower-end amps begin compressing

This is particularly noticeable in:

• Electronic music systems
• Festival PA deployments
• High-output club installations

---

Connectivity & Control

The FP10000Q is built for professional touring integration.

---

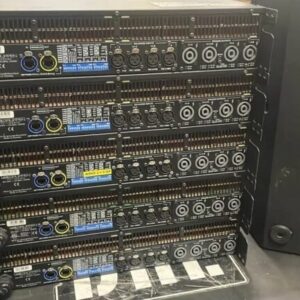

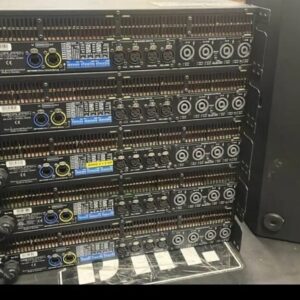

Inputs & Outputs

Inputs:

• 4 × balanced XLR inputs
• XLR link outputs

Outputs:

• SpeakON NL4 outputs
• Heavy-duty binding posts

---

NomadLink® Network Integration

The amplifier includes:

• NomadLink® network monitoring
• DeviceControl software compatibility

---

Practical Control Benefits

• Remote amplifier monitoring
• Rack-level diagnostics
• Faster troubleshooting during live events

---

Protection & Reliability

The FP10000Q includes comprehensive touring protection systems.

---

Protection Features

• Thermal protection
• Short circuit protection
• DC protection
• Clip limiting
• Current limiting

---

Cooling System

The amplifier uses:

• High-efficiency cooling architecture
• Optimized airflow system
• Copper heat dissipation design

---

Touring Reliability

The FP10000Q became popular in European touring because it could reliably survive:

• Long festivals
• High ambient temperatures
• Continuous heavy load operation

---

Physical & Mechanical Details

---

Typical System Applications

The FP10000Q is commonly deployed in:

• Funktion-One systems
• Touring line arrays
• Large subwoofer arrays
• Festival sound systems
• Club installations
• Rental company amplifier racks

---

Typical Rack Configuration

• FP10000Q for tops and mids
• Additional FP amplifiers for subwoofers
• External DSP or loudspeaker management processor

---

Practical Result

• High-output scalable system
• Reduced rack space
• Touring-grade reliability

---

Why Buy or Rent the FP10000Q in Europe?

The FP10000Q remains highly desirable in Europe because it combines:

• Proven touring reliability
• Exceptional output power
• Premium sound quality
• Compact rack efficiency

For many rental companies and engineers, it remains a preferred amplifier for:

• Legacy touring systems
• Funktion-One rigs
• Festival deployments
• High-output club installations

---

System Advantages in Practice

Power Density:
10,000 W output in compact 2U format.

Efficiency:
Class TD reduces heat and power consumption.

Sound Quality:
Maintains clarity and punch under heavy load.

Flexibility:
4 channels support multi-way system configurations.

Reliability:
Designed specifically for professional touring environments.

---

Summary

The Lab Gruppen FP 10000Q is a high-power 4-channel touring amplifier combining exceptional output capability, Class TD efficiency, and professional-grade reliability, making it one of the most respected amplifiers in live sound reinforcement.

---

Bottom Line

For professional audio systems in Europe, the FP10000Q remains a benchmark touring amplifier, ideal for large-scale sound systems requiring high headroom, tight low-frequency control, and dependable performance in demanding live environments.
