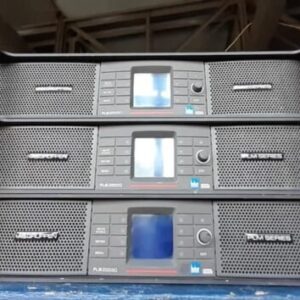

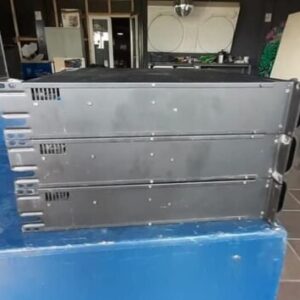

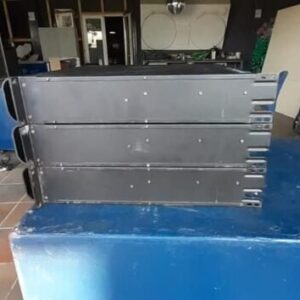

Lab Gruppen PLM 20000Q – High-Power Touring Amplifier with Integrated Lake DSP Processing

The Lab Gruppen PLM 20000Q is a flagship 4-channel amplified loudspeaker management system engineered for large-scale touring, festival, and installation sound systems, combining:

• Massive output power
• Integrated Lake DSP processing
• Dante digital networking
• Advanced loudspeaker optimization
• Touring-grade reliability

into one professional amplifier platform.

Manufactured by Lab Gruppen, the PLM 20000Q represents one of the most advanced amplifier systems ever developed for professional live sound.

Unlike traditional touring amplifiers that require separate:

• DSP processors
• Loudspeaker controllers
• Network interfaces

the PLM20000Q integrates all of these functions into a single intelligent amplifier ecosystem.

Across Europe, the PLM20000Q is widely deployed in:

• Arena touring systems
• Festival PA rigs
• Premium rental inventories
• Stadium productions
• High-end installations
• Touring line arrays

because it provides not only enormous output power, but also the precision system control demanded in modern professional audio environments.

---

Why the PLM20000Q Became a Modern Touring Standard

Modern sound systems require much more than raw amplifier power.

Today’s professional touring systems demand:

• Network control
• Loudspeaker optimization
• Real-time monitoring
• DSP precision
• Redundant audio infrastructure

The PLM20000Q became highly respected because it combines all these functions into a single scalable touring solution.

---

Real-World Touring Advantage

In practical deployment, the PLM20000Q allows engineers to:

• Reduce rack space
• Simplify system wiring
• Minimize external processing hardware
• Improve setup efficiency
• Monitor systems remotely in real time

This is extremely valuable for European touring companies operating:

• Fast festival changeovers
• Large-scale line arrays
• Multi-stage productions
• Complex networked audio systems

---

System Overview

Amplifier Type: 4-channel powered loudspeaker management amplifier

Amplifier Technology: Class TD® amplification with integrated Lake DSP

Rack Format: 2U touring chassis

Primary Function:

• Powers large-format professional sound systems
• Provides integrated DSP loudspeaker management
• Supports networked touring and installation environments

---

Power Output & Amplifier Performance

The PLM20000Q is engineered for extremely demanding high-output sound systems.

---

Output Power Specifications

Output Power Per Channel:

• 4 × 5000 W @ 2 Ω
• 4 × 4000 W @ 4 Ω
• 4 × 2100 W @ 8 Ω

Total Peak Output:

• Up to 20,000 W total system power

---

Real-World Performance

This output capability allows the PLM20000Q to drive:

• Large-format line arrays
• High-power subwoofer systems
• Stadium PA deployments
• Multi-zone touring systems

while maintaining:

• Exceptional headroom
• Tight low-frequency control
• Stable high SPL operation

---

Why Touring Engineers Prefer the PLM Series

In demanding live environments:

• weaker amplifiers begin compressing,
• bass becomes unstable,
• and system clarity starts collapsing.

The PLM20000Q is engineered specifically to prevent this.

Even during:

• heavy bass program material,
• long-duration festivals,
• or continuous high SPL operation,

the amplifier maintains:

• punch,
• clarity,
• and system control.

---

Integrated Lake DSP Processing

One of the most important features of the PLM20000Q is the integrated Lake DSP platform.

This transforms the amplifier into a complete loudspeaker management system.

---

Lake Processing Features

Integrated DSP Includes:

• FIR and IIR filtering
• Linear phase processing
• Advanced EQ control
• Crossover management
• Delay alignment
• Loudspeaker optimization

---

Why Lake DSP Matters

Lake processing is widely regarded as one of the most respected DSP platforms in professional touring audio because it provides:

• extremely precise system tuning,
• advanced loudspeaker control,
• and highly transparent processing.

---

Practical Benefit in Real Systems

For touring engineers, this means:

• faster system alignment,
• more consistent venue-to-venue performance,
• improved phase coherence,
• and better audience coverage consistency.

---

Dante Networking & Digital Audio Integration

The PLM20000Q is designed for modern networked audio environments.

---

Dante Integration

The amplifier includes:

• Dante digital audio networking
• Redundant network capability
• Low-latency audio transport

---

Practical Touring Advantage

This allows engineers to:

• reduce analog cabling,
• simplify signal distribution,
• and integrate directly into digital console ecosystems.

For large European touring productions, this significantly improves:

• deployment speed,
• troubleshooting,
• and overall rack organization.

---

Class TD® Amplifier Technology

The PLM20000Q uses Lab Gruppen’s proprietary Class TD amplifier topology.

This combines:

• the sonic quality of Class AB,
• with the efficiency advantages of Class D.

---

Real-World Acoustic Advantage

Compared to conventional amplifiers:

• heat generation is reduced,
• efficiency is improved,
• and transient response remains exceptionally fast.

This gives the PLM20000Q its:

• tight bass response,
• strong punch,
• and highly dynamic sound character.

---

Rational Power Management (RPM™)

One of the PLM Series’ most advanced features is Rational Power Management.

---

What RPM Does

RPM allows amplifier power to be dynamically distributed between channels depending on loudspeaker demand.

---

Practical Benefit

This improves:

• system flexibility,
• amplifier efficiency,
• and loudspeaker optimization.

For example:

• subwoofer channels can receive more available power,
• while HF channels use less.

This makes the amplifier highly adaptable across different touring systems.

---

Cooling & Touring Reliability

The PLM20000Q is engineered for demanding continuous operation.

---

Cooling Architecture

• High-efficiency front-to-rear airflow
• Variable-speed cooling fans
• Advanced thermal management systems

---

Touring Reliability

The amplifier is designed to survive:

• multi-day festivals,
• high ambient temperatures,
• difficult touring conditions,
• and continuous heavy system loads.

This reliability is one reason why PLM amplifiers became standard inventory among premium European rental companies.

---

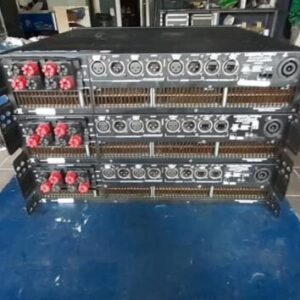

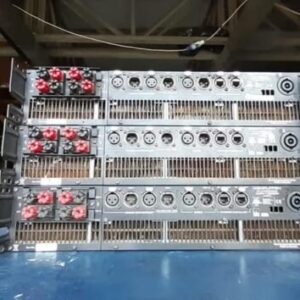

Connectivity & System Integration

Inputs:

• Analog audio
• AES/EBU digital audio
• Dante networking

Outputs:

• SpeakON loudspeaker outputs

Network Control:

• Lake Controller software
• Real-time monitoring and tuning

---

Typical Applications

The PLM20000Q is widely used in:

• Touring line array systems
• Festival PA deployments
• Stadium sound systems
• High-end club installations
• Premium rental inventories
• Large-scale AV productions

---

Why Buy or Rent the PLM20000Q in Europe?

For professional users across Europe, the PLM20000Q delivers:

• massive amplifier power,
• integrated Lake DSP,
• networked audio control,
• and touring-grade reliability

within a single compact platform.

For rental companies and production providers, this means:

• fewer rack components,
• faster deployment,
• cleaner system integration,
• and more efficient touring infrastructure.

---

System Advantages in Practice

Integrated DSP:
Eliminates the need for external loudspeaker processors.

Massive Power Output:
Up to 20,000 W total amplifier power.

Touring Efficiency:
Reduces rack space and simplifies deployment.

Network Integration:
Dante and Lake control streamline system management.

Reliability:
Designed for continuous high-pressure touring operation.

---

Summary

The Lab Gruppen PLM20000Q is a high-power touring amplifier and loudspeaker management platform combining advanced DSP processing, Dante networking, and massive output capability, making it one of the most complete amplifier solutions in professional audio.

---

Bottom Line

For professional sound systems in Europe, the PLM20000Q remains a premium touring amplifier solution for festivals, arenas, rental companies, and large-scale productions, delivering the perfect combination of:

• power,
• control,
• network integration,
• and professional reliability.
