D&B Audiotechnik Y8 / Y12 / Y-SUB / D80 – Complete Line Array System Package (Y-Series)

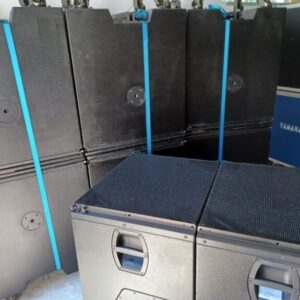

The D&B Audiotechnik Y Series complete system (Y8 / Y12 / Y-SUB / D80) is a fully integrated professional line array solution designed for medium to large-scale sound reinforcement, combining high-output loudspeakers, cardioid subwoofer technology, and advanced DSP amplification.

This package represents a complete system architecture, where each component—tops, subs, amplification, and control—is engineered to work together for consistent coverage, predictable performance, and efficient deployment across touring, festivals, and installations in Europe.

---

Key Specifications

System Type: Passive 2-way line array with active cardioid subwoofer integration
Main Components: Y8 (80°), Y12 (120°), Y-SUB, D80 amplifier

Drivers (Y8 / Y12):
2 × 8″ LF drivers (dipole arrangement), 1 × 1.4″ HF compression driver

Horizontal Dispersion:

• Y8: 80° constant directivity
• Y12: 120° constant directivity

Frequency Response (–5 dB):

• Y8 / Y12: ~60–18 kHz (full-range operation)
• Y-SUB: ~37 Hz – 115 Hz (standard mode)

Max SPL (1 m, free-field):

• Up to ~139 dB (with D80 amplification)

Array Capacity:

• Up to 24 cabinets per array with 0°–14° splay angles

---

Physical & Mechanical Details

Construction: Marine plywood cabinets with PCP (Polyurea Cabinet Protection) finish
Grille: Steel grille with acoustically transparent foam backing
Rigging: Integrated 3-point rigging system for fast deployment
Handles: Integrated side handles for transport

Y8 / Y12 Dimensions: Approx. 257–310 mm × 600–630 mm × 355–375 mm
Weight: ~19–20.5 kg per cabinet

Y-SUB Construction:

• Dual-driver cardioid design (18″ front + 12″ rear)
• Built-in rigging and transport wheels

Connectors: EP5 standard with optional NL4 configurations

---

Key Features & Configuration

Dual Dispersion System (Y8 / Y12):
Allows precise horizontal coverage design using 80° and 120° cabinets within the same array.

Dipole Driver Arrangement:
Improves low-frequency control and reduces unwanted rear radiation, ensuring consistent tonal balance.

Cardioid Subwoofer Technology (Y-SUB):
The integrated cardioid design reduces rearward low-frequency energy, improving stage conditions and reducing noise spill.

High-Efficiency System Design:
Delivers high SPL with fewer cabinets, reducing system weight and transport requirements.

---

Amplification & Control – D80 Integration

The system is powered by the D80 4-channel DSP amplifier, which provides:

• Loudspeaker-specific presets
• Integrated crossover and EQ
• Delay alignment and system protection
• Network control via d&b R1 software

---

Practical Advantage

• Eliminates need for external processors
• Ensures consistent system tuning
• Enables centralized control of large systems

---

Array Configuration & Deployment

Vertical Array Deployment:
Supports arrays of up to 24 cabinets with precise 1° splay angle adjustments.

Typical Configurations:

• Small system: 4–6 cabinets per side
• Medium system: 6–10 cabinets per side
• Large system: 12–16+ cabinets per side

Subwoofer Deployment:

• Ground-stacked arrays
• Flown sub arrays
• Cardioid configurations for controlled LF

---

Acoustic Modes & System Optimization

CUT Mode:
Reduces low-frequency output when subwoofers are used, improving clarity.

HFC (High-Frequency Compensation):
Maintains high-frequency response over long distances.

CPL (Coupling):
Balances low-frequency buildup in larger arrays.

---

System Integration

Typical complete package includes:

• Y8 and Y12 line array cabinets
• Y-SUB cardioid subwoofers
• D80 amplifiers (touring racks)
• Rigging frames, adapters, and cabling

Example configuration:

• 12 × Y8 (main array)
• 4 × Y12 (outfill or front-fill)
• 4 × Y-SUB (ground stack)
• 2 × D80 amplifiers

---

Ideal Applications

Medium to large touring systems
Festivals and outdoor events
Corporate productions and live shows
Theaters and fixed installations
Events requiring controlled low-frequency dispersion

---

Performance Characteristics

The Y Series complete system is known for:

• Even sound distribution across the audience
• Clear vocal intelligibility at distance
• Controlled low-frequency performance with cardioid subs
• Predictable system behavior across venues

In real-world use, it delivers a balanced, scalable sound system that adapts easily to different environments without compromising clarity or output.

---

System Advantages in Practice

Scalability:
Easily adapts from small events to large festivals using the same platform.

Efficiency:
Compact cabinets reduce transport, rigging time, and labor costs.

Flexibility:
Combination of Y8 and Y12 allows tailored coverage for any venue.

Control:
D80 amplification ensures consistent and repeatable system performance.

---

Summary

The D&B Audiotechnik Y8 / Y12 / Y-SUB / D80 complete system is a fully integrated line array solution delivering high output, precise coverage, and efficient deployment.

---

Bottom Line

For professional audio applications in Europe, this system offers a perfect balance of power, flexibility, and control, making it one of the most practical and widely used line array packages for touring and live events.
